Quercetin-3-O-beta-D-galactoside

IDs and Links
MassBank	Quercetin-3-O-beta-D-galactoside
CAS	482-36-0
Keio ID

Top 10 Similar Molecules of Quercetin-3-O-beta-D-galactoside

Ranking	About scoring
M080+ Score:10.68 G020+ Score:9.29 A007+ Score:9.29 D067+ Score:5.25 A020+ Score:5.25 P075+ Score:5.25 O015+ Score:5.25 A133+ Score:5.25 A204+ Score:4.03 M082+ Score:4.03	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

Page list for each fragment
Pages Related to Peak C5H5O2:   A007+  A133+  G020+  O015+  P075+  A020+  D067+   Pages Related to Peak C3H7O3:   M080+   Pages Related to Peak C4H5O2:   A007+  A031+  A059+  E005+  G003+  G005+  G019+  G020+  G043+  G061+  G065+  M067+  M080+  P067+  S049+  A143+  C041+  D038+  D083+  E056+  G046+  G051+  M011+  M081+  M082+  A204+

Annotations

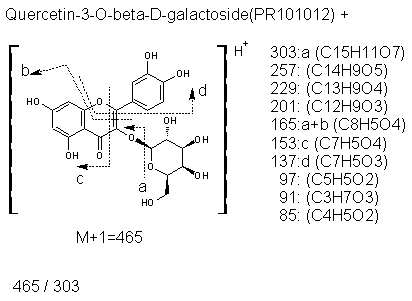

Precursor-Product Relationship

About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

PR101012p	465 C21H21O12	303 C15H11O7	257 C14H9O5	229 C13H9O4	201 C12H9O3	165 C8H5O4	153 C7H5O4	137 C7H5O3	97 C5H5O2	91 C3H7O3	85 C4H5O2
465 C21H21O12
303 C15H11O7	C6H10O5
257 C14H9O5	C7H12O7	CH2O2
229 C13H9O4	C8H12O8	C2H2O3	CO
201 C12H9O3	C9H12O9	C3H2O4	C2O2	CO
165 C8H5O4	C13H16O8	C7H6O3	C6H4O	C5H4
153 C7H5O4	C14H16O8	C8H6O3	C7H4O	C6H4		C
137 C7H5O3	C14H16O9	C8H6O4	C7H4O2	C6H4O	C5H4	CO	O
97 C5H5O2	C16H16O10	C10H6O5	C9H4O3	C8H4O2	C7H4O	C3O2	C2O2	C2O
91 C3H7O3	C18H14O9	C12H4O4	C11H2O2	C10H2O	C9H2
85 C4H5O2	C17H16O10	C11H6O5	C10H4O3	C9H4O2	C8H4O	C4O2	C3O2	C3O	C
