syringetin-3-O-galactoside

IDs and Links
MassBank	syringetin-3-O-galactoside
CAS	55025-56-4
Keio ID

Top 10 Similar Molecules of syringetin-3-O-galactoside

Ranking	About scoring
	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

Page list for each fragment

Annotations

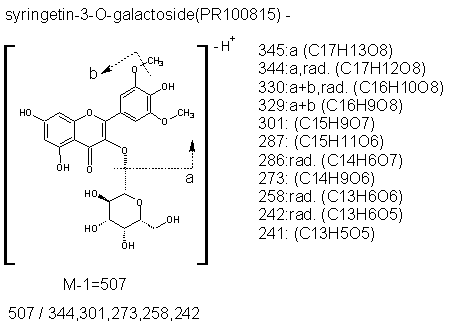

Precursor-Product Relationship

About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

PR100815n	507 C23H23O13	345 C17H13O8	344 C17H12O8	330 C16H10O8	329 C16H9O8	301 C15H9O7	287 C15H11O6	286 C14H6O7	273 C14H9O6	258 C13H6O6	242 C13H6O5	241 C13H5O5
507 C23H23O13
345 C17H13O8	C6H10O5
344 C17H12O8	C6H11O5	H
330 C16H10O8	C7H13O5	CH3	CH2
329 C16H9O8	C7H14O5	CH4	CH3	H
301 C15H9O7	C8H14O6	C2H4O	C2H3O	CHO	CO
287 C15H11O6	C8H12O7	C2H2O2	C2HO2
286 C14H6O7	C9H17O6	C3H7O	C3H6O	C2H4O	C2H3O	CH3
273 C14H9O6	C9H14O7	C3H4O2	C3H3O2	C2HO2	C2O2	CO	CH2
258 C13H6O6	C10H17O7	C4H7O2	C4H6O2	C3H4O2	C3H3O2	C2H3O	C2H5	CO	CH3
242 C13H6O5	C10H17O8	C4H7O3	C4H6O3	C3H4O3	C3H3O3	C2H3O2	C2H5O	CO2	CH3O	O
241 C13H5O5	C10H18O8	C4H8O3	C4H7O3	C3H5O3	C3H4O3	C2H4O2	C2H6O	CHO2	CH4O	HO	H
