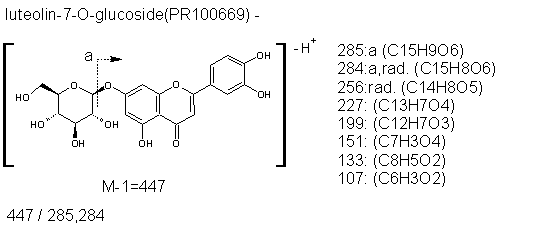

luteolin-7-O-glucoside

IDs and Links
MassBank	luteolin-7-O-glucoside
CAS	5373-11-5
Keio ID

Top 10 Similar Molecules of luteolin-7-O-glucoside

[show] Ranking	About scoring
	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

[show] Page list for each fragment

Annotations

Precursor-Product Relationship

[show] About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

[hide] PR100669n	447 C21H19O11	285 C15H9O6	284 C15H8O6	256 C14H8O5	227 C13H7O4	199 C12H7O3	151 C7H3O4	133 C8H5O2	107 C6H3O2
447 C21H19O11
285 C15H9O6	C6H10O5
284 C15H8O6	C6H11O5	H
256 C14H8O5	C7H11O6	CHO	CO
227 C13H7O4	C8H12O7	C2H2O2	C2HO2	CHO
199 C12H7O3	C9H12O8	C3H2O3	C3HO3	C2HO2	CO
151 C7H3O4	C14H16O7	C8H6O2	C8H5O2	C7H5O	C6H4
133 C8H5O2	C13H14O9	C7H4O4	C7H3O4	C6H3O3	C5H2O2	C4H2O
107 C6H3O2	C15H16O9	C9H6O4	C9H5O4	C8H5O3	C7H4O2	C6H4O	CO2	C2H2
