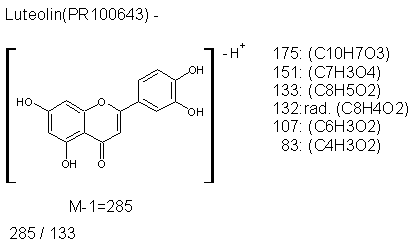

Luteolin

IDs and Links
MassBank	Luteolin
CAS	491-70-3
Keio ID

Top 10 Similar Molecules of Luteolin

Ranking	About scoring
	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

Page list for each fragment

Annotations

Precursor-Product Relationship

About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

PR100643n	285 C15H9O6	175 C10H7O3	151 C7H3O4	133 C8H5O2	132 C8H4O2	107 C6H3O2	83 C4H3O2
285 C15H9O6
175 C10H7O3	C5H2O3
151 C7H3O4	C8H6O2
133 C8H5O2	C7H4O4	C2H2O
132 C8H4O2	C7H5O4	C2H3O		H
107 C6H3O2	C9H6O4	C4H4O	CO2	C2H2	C2H
83 C4H3O2	C11H6O4	C6H4O	C3O2	C4H2	C4H	C2
