DL-threo-beta-Methylaspartic acid

IDs and Links
MassBank	DL-threo-beta-Methylaspartic acid
CAS	6667-60-3
Keio ID

Top 10 Similar Molecules of DL-threo-beta-Methylaspartic acid

Ranking	About scoring
A204+ Score:8.03 E056+ Score:8.03 D038+ Score:8.03 G043+ Score:8.03 G019+ Score:8.03 G005+ Score:8.03 E005+ Score:8.03 A031+ Score:8.03 M082+ Score:4.03 M081+ Score:4.03	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

Page list for each fragment

Pages Related to Peak C4H8NO2:   A031+  A065+  C094+  E005+  F034+  G005+  G018+  G019+  G043+  M003+  M114+  O008+  P092+  R016+  T010+  T020+  A020+  A239+  B090+  D038+  D061+  D183+  E056+  G006+  H003+  M025+  A204+   Pages Related to Peak C4H5O2:   A007+  A031+  A059+  E005+  G003+  G005+  G019+  G020+  G043+  G061+  G065+  M067+  M080+  P067+  S049+  A143+  C041+  D038+  D083+  E056+  G046+  G051+  M011+  M081+  M082+  A204+

Annotations

Precursor	Product	Comments
(0)	(0)	KOX00410

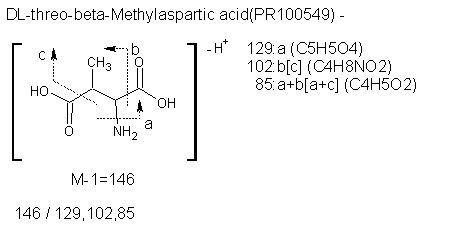

Precursor-Product Relationship

About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

PR100549n	146 C5H8NO4	129 C5H5O4	102 C4H8NO2	85 C4H5O2
146 C5H8NO4
129 C5H5O4	H3N
102 C4H8NO2	CO2
85 C4H5O2	CH3NO2	CO2	H3N
