DL-alpha,epsilon-Diaminopimelic acid

IDs and Links
MassBank	DL-alpha,epsilon-Diaminopimelic acid
CAS	583-93-7
Keio ID

Top 10 Similar Molecules of DL-alpha,epsilon-Diaminopimelic acid

Ranking	About scoring
I015+ Score:11.48 M011+ Score:5.94 S049+ Score:5.94 D030+ Score:5.54 D061+ Score:5.54 A197+ Score:5.54 H064+ Score:5.54	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

Page list for each fragment
Pages Related to Peak C6H10NO2:   H064+  I015+  A197+  D061+  D030+   Pages Related to Peak C6H7O2:   I015+  S049+  M011+

Annotations

Precursor	Product	Comments
(0)	(0)	KOX00899

Precursor-Product Relationship

About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

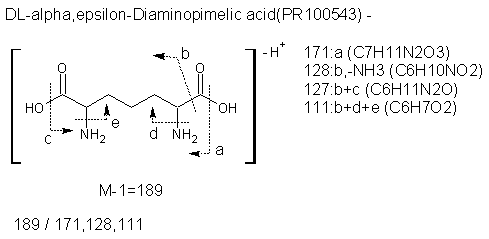

PR100543n	189 C7H13N2O4	171 C7H11N2O3	128 C6H10NO2	127 C6H11N2O	111 C6H7O2
189 C7H13N2O4
171 C7H11N2O3	H2O
128 C6H10NO2	CH3NO2	CHNO
127 C6H11N2O	CH2O3	CO2
111 C6H7O2	CH6N2O2	CH4N2O	H3N
