3-Guanidinopropionic acid

IDs and Links
MassBank	3-Guanidinopropionic acid
CAS	353-09-3
Keio ID

Top 10 Similar Molecules of 3-Guanidinopropionic acid

Ranking	About scoring
G039+ Score:28.73 C008+ Score:10.99 V020+ Score:5.72 C034+ Score:5.72 A196+ Score:5.72 P061+ Score:5.38 M115+ Score:5.38 P039+ Score:5.38 G037+ Score:5.38 F025+ Score:5.38	The similarity score between two molecules is defined as the sum of Shannon entropy of ionic formulas shared by the molecules: $\textstyle - \sum_{p\in shared} \log(\mbox{frequency}(p))$ 代謝物間の類似度スコアは、それらのスペクトルで共有される（アノテートされた）イオン式のシャノン情報量の総和です。

Links

Page list for each fragment
Pages Related to Peak C4H10N3O2:   C008+  G039+   Pages Related to Peak C4H7N2O2:   F025+  G037+  P039+  G039+  M115+  P061+   Pages Related to Peak C4H8N3O:   A196+  C034+  G039+  V020+   Pages Related to Peak C3H8NO2:   A011+  A015+  A021+  A138+  P032+  S014+  A194+  A197+  C008+  G039+  P084+  A155+   Pages Related to Peak C2H6N3:   G039+

Annotations

Precursor	Product	Comments
(0)	(0)	KOX00737

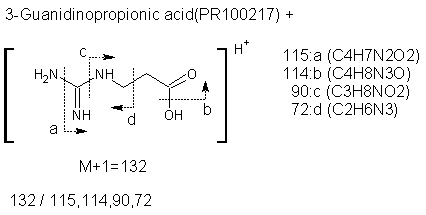

Precursor-Product Relationship

About the PP Table (行列表示について)
The matrix is viewed columnwise. The topmost precursor ion in bold face produces the product ions beneath it. Each formula in matrix cells corresponds to the neutral loss. Blackout cells indicate products that cannot be derived, and orange cells indicate a structurally plausible link produced by cleaving a single chemical bond (in cases of ring-opening, two bonds).	行列は列方向に見ます。最上段太字の前駆イオン(precursor ion)が直下の生成イオン群(product ions)になると解釈します。 行列要素に書かれている組成式はニュートラルロスです。黒は前駆イオンから生成しえない関係、オレンジは分子構造における共有結合1本の切断（開環の場合は2本）で生じる関係を意味します。

PR100217p	132 C4H10N3O2	115 C4H7N2O2	114 C4H8N3O	90 C3H8NO2	72 C2H6N3
132 C4H10N3O2
115 C4H7N2O2	H3N
114 C4H8N3O	H2O
90 C3H8NO2	CH2N2
72 C2H6N3	C2H4O2		C2H2O
